HomeLike Rigid Core Pro

HomeLike Rigid Core Pro collection presents most authentic wood plank and stone tile look and texture with high-definition imagery plus and Embossed In Register technology. Various luxurious wood and tile designs with realistic HD-3D printing technology and painted bevel enhanced its gorgeous aesthetic. Ultra-fresh treatment for both attached underlayment and top surface inhibits the growth of mold, mildew and odor even with moisture from concrete subfloors.

Comfortable to daily life, friendly to pets!

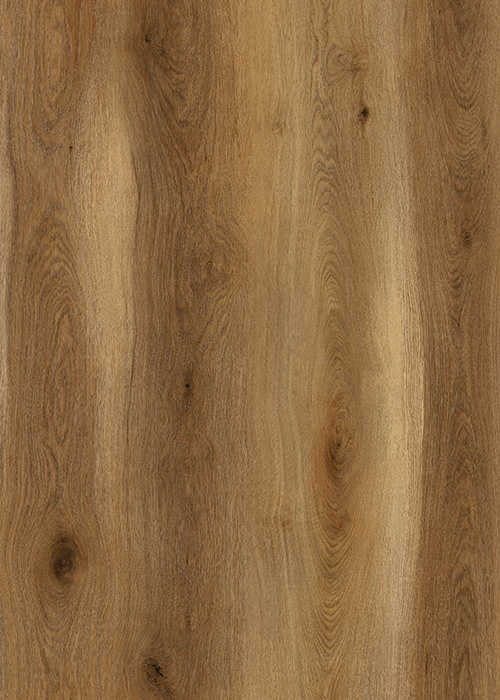

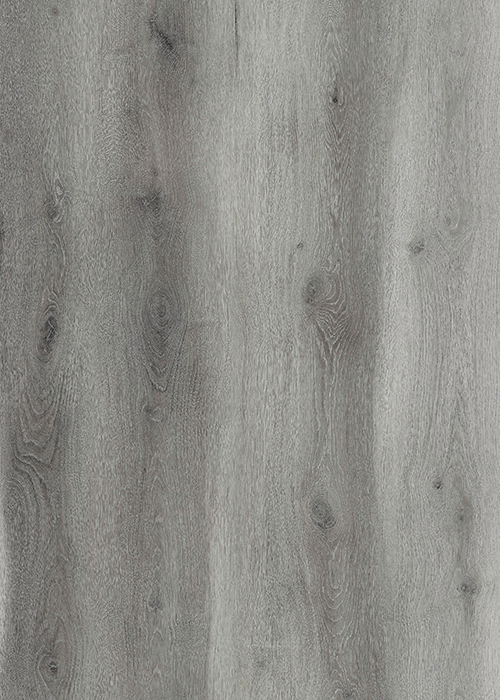

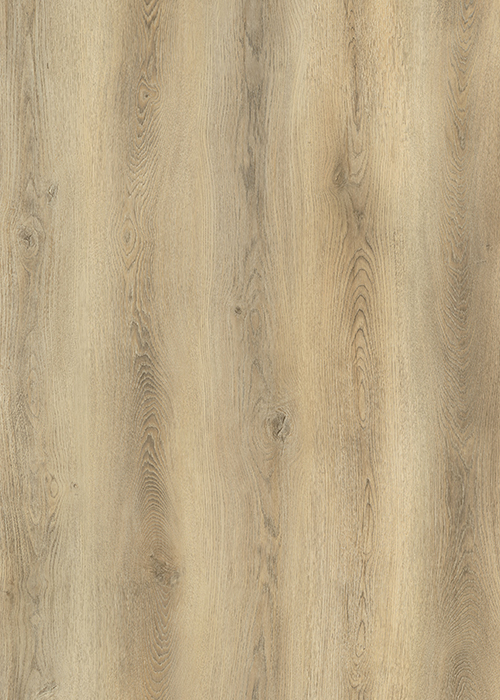

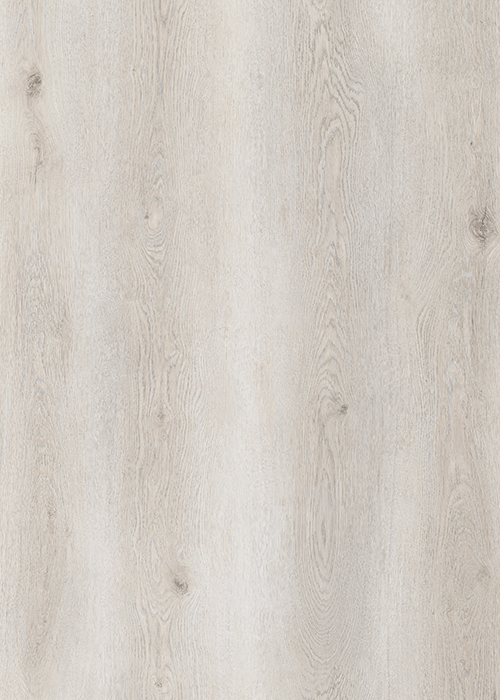

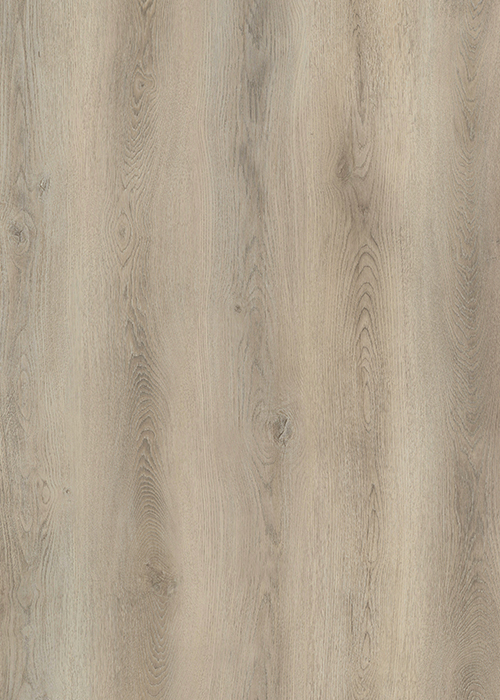

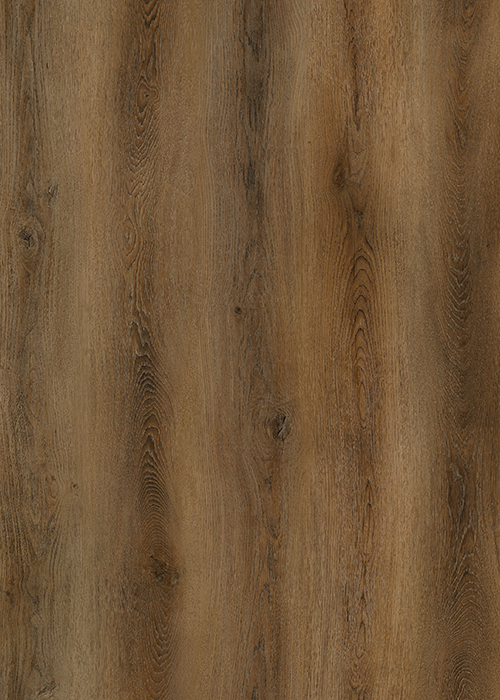

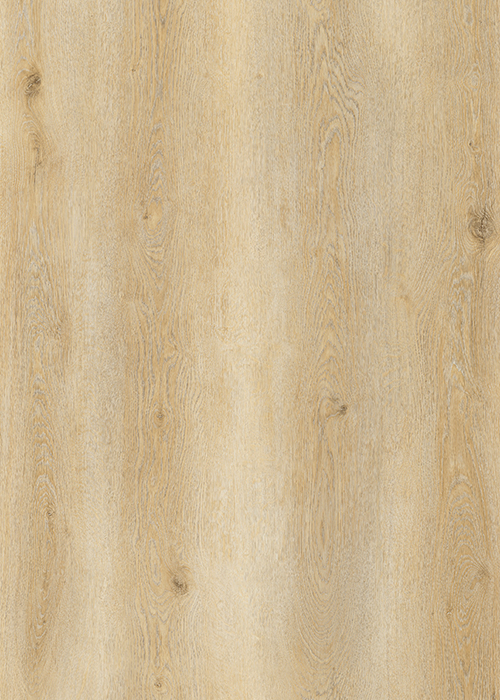

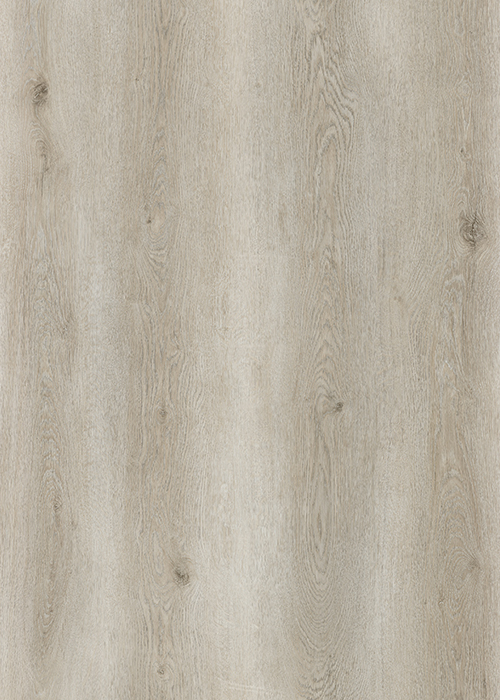

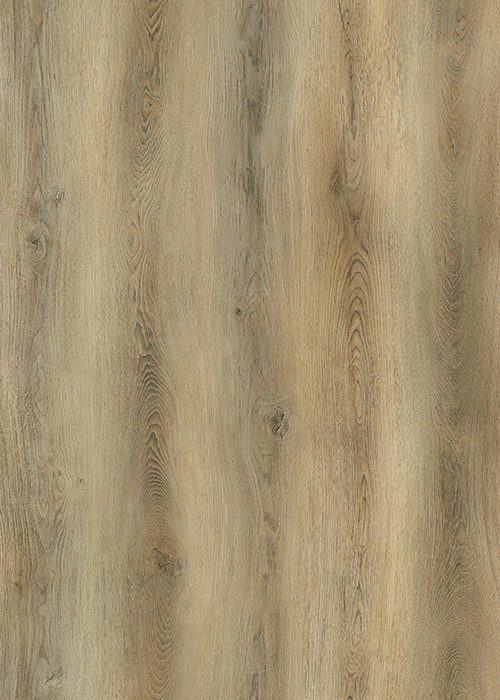

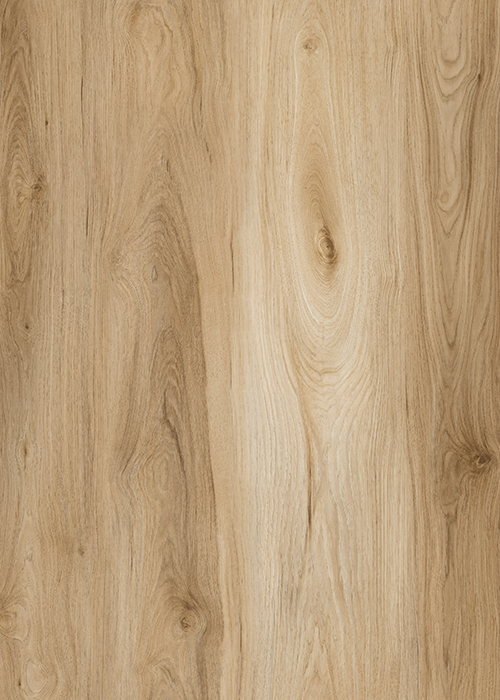

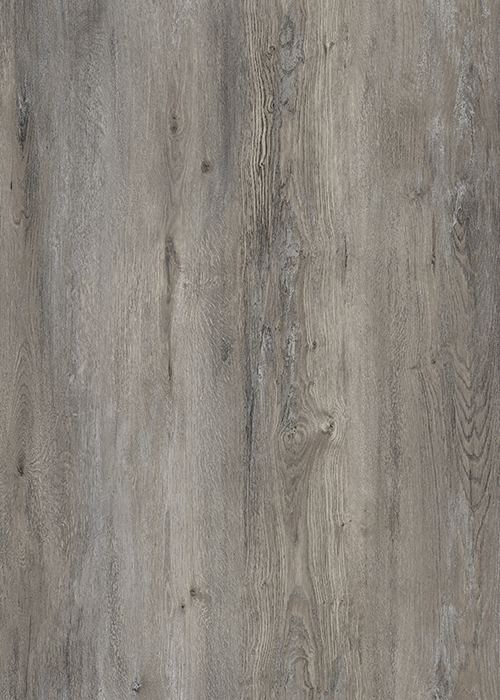

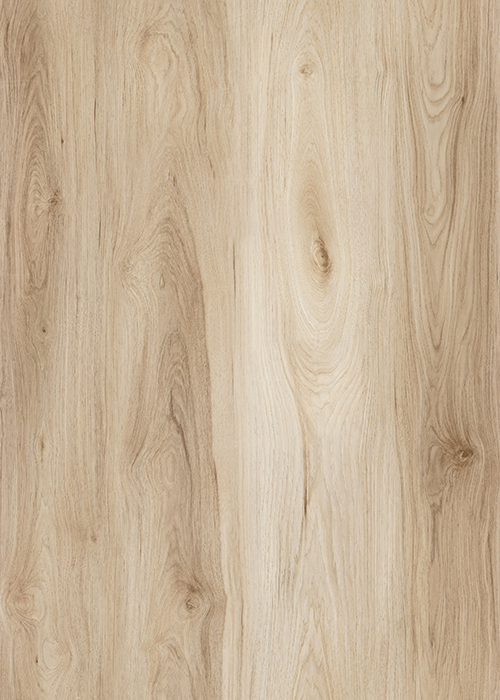

Wood Grain
Specifications Technical Data
Length 48.03" Width 7.16"
Thickness 5.5mm Wear Layer 20mil
Finish EIR Edge Description Painted Bevel
Sqft/Box 23.90 lb/Box 41.1
Box/Plt 65 Sqft/Plt 1554
lb/Plt 2673 Plt/FTL 16
Limited
Residential Warranty
Lifetime Limited
Commercial Warranty
15Years
Items Standards Requirements Result
GreenGuard Gold
Certified
UL 2818 - 2013 Gold Standard for Chemical Emissions for Building Materials, Finishes and Furnishings Refer to Standards Pass
Floorscore
Certification
SCS-EC10.3-2014v3.0 Refer to Standards Pass
CE Certification EN14041 Refer to Standards Pass
Fire resistance EN 9239-1
EN ISO11925-2
EN 13501-1
Critical Fluxf≥8.0kW/m2
Fs≤150mm within 20s
Smoke≤750% minutes
Bfl-S1
Phthalate tests
(DBP/BBP/DEHP/DINP/
DNOP/DIDP)
EN 14372:2004 N/A Free
Dimension stability ASTM F2199-09(R2014) ≦0.25% Manufacturing direction:-0.046%
Across-manufacturing direction:-0.009%
Seam strength EN 684:1995 N/A Ave.:360N/50mm Pass
Min.:330N/50mm
Residual indentation (%) ASTM F1700-13a &
ASTM F1914-07(2011)
Average value≦8
Individual value≦10
0.4 Pass
Resistance to chemicals ASTM F1700-13a &
ASTM F925-13
No more than a slight change in surface dulling,surface attack,or staining No change in surface dulling,surface attack,or staining was detected
Heat stability ASTM F1514-03(R2013) △E*ab< 8 △E*ab=0.67 Pass
Static loading ASTM F970-17 N/A 0.04mm Pass
Soluble heavy metal contents test ASTM F963-16(Clause 8.3) N/A Free
Large ball impact resistance NALFA/ANSI LF-01-2011 N/A No cracks or fractures occurred at the height of 2500mm
Static Electrical Propensity EN 1815:2016 method A ≦2kV 0.2kV
Sound Transmission Class ASTM E90-2009(R2016)
ASTM E413-10
N/A STC=68
Formaldehyde ISO 17226-1:2008 N/A Free
Surface Bond NALFA/ANSI LF-01-2011 N/A 1.14MPa Pass
Resilient floor covering Determination of peel resistance EN ISO 24345:2012 ≥54N/50mm Longitudinal direction:95N/50mm
Cross direction:95N/50mm
Castor chair Resistance(25000 Cycles) NALFA/ANSI LF-01-2011
ISO4918:2016
N/A No damage was found after test
Thermal conductivity EN 12667:2001 N/A 0.154 W/(m.K)
Thermal Resistance EN 12667:2001 N/A 0.033(m2.K)/W
Colour Fastness EN ISO 105-B02:2014 N/A Grade 6
Curling ISO 23999:2008 N/A Average: 0.5mm Pass
Locking strength ISO 10582:2017 Annex D Class 32,
type I:≥1.5kN/m
Long side(X): 7.6 kN/m
Short side(Y): 6.3 kN/m Pass
Resistance to staining ISO 26987:2008 N/A Index 0: Not affected Pass
Slip resistance
(oil-wet ramp test)
DIN 51130:2014-02 N/A Critical angle of inclination: 14.8°Classification: R10 Pass
Resistance to bacteria ISO 846-1997 Method C N/A Assessment of bacteria growth: 0 Pass
DOWNLOADS
INDUSTRY-LEADING RESISTANCE
TO SCRATCHES, STAINS, AND DENTS
Bolstered by the strength of real diamonds,
protected by the Wear Layer, protecting the beauty
of your investment.
