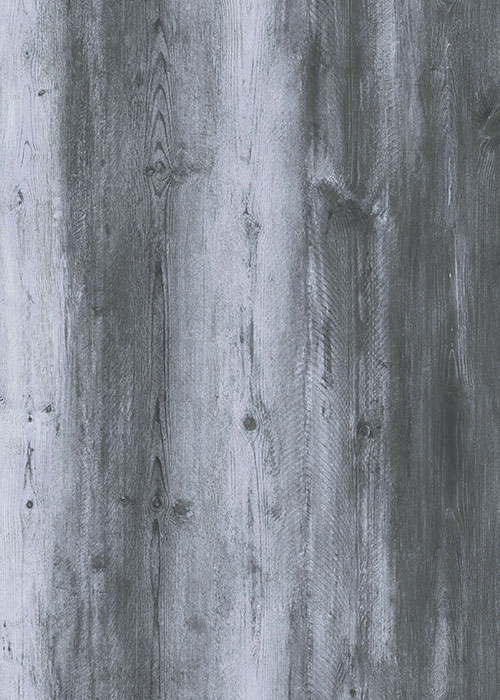

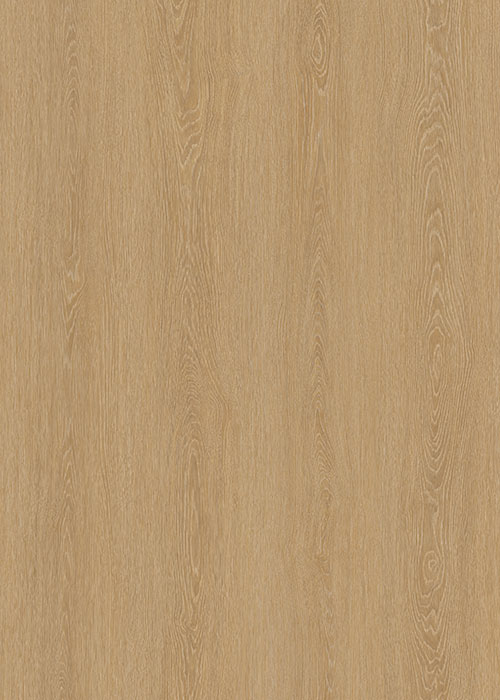

(CC) – Made in China Rigid Core 5mm 12mil

Specifications Technical Data

Length	48.03	Width	7.17
Thickness	5mm	Wear Layer	12mil
Finishing	Random EIR	Edge Description	Micro Bevel
Sqft/Box	28.68	lb/Box	49.4
Box/Plt	55	Sqft/Plt	1577
lb/Plt	2745	Plt/FTL	16
Limited Residential Warranty	Lifetime	Limited Commercial Warranty	10Years

No.	Description		Method	Standard	Result	Performace Rating
1	Packing Appearance		Internal	Pallets/Cartons/Labels/Inserts/Bar Codes match customer order in quality and quantity, with neat appearance.	Pass	Better
2	Product Appearance		Internal	Material must match customer order. No print film folding, no rough bevel, no bevel with white line, no film scratch or breakage, no color difference, no wear layer bubbles, no impurities, no stains, no dents, no scratches, no broken corners, no fish eyes, no trash, no holes, no hair/ foreign subject, no overhang or uneven backpad, etc.	Pass	Better
3	Dimensions	Length Width	ASTM F1700	± 0.40 mm ± 0.10 mm	0.03mm 0.02mm	Best Best
4	Overall Thickness		ASTM F1700	± 0.10 mm	0.02mm	Best
5	Squareness	Length Width	ISO 24342	≤ 0.25 mm ≤ 0.25 mm	0.03mm 0.02mm	Best Best
6	Straightness	Length Width	ISO 24342	≤ 0.25 mm ≤ 0.25 mm	0.05mm 0.01mm	Best Best
7	Stitching Gap (mm)		EN13329	≤ 0.10mm	0.02mm	Best
8	Height Difference		EN13329	≤ 0.10mm	0.03mm	Best
9	Resilient floor covering Determination of peel resistance		EN ISO 24345:2012	≥54N/50mm	Longitudinal direction: 95N/50mm Cross direction: 95N/50mm	Best
10	Scratch Resistance		EN 16094B	> 2500g	3,500g	Best
11	Micro-Scratch Resistance (A & B)		EN 16094	MSR-B1 - B3	MSR-B2	Better
12	Coating Adhesion (Cross hatch)		EN 16094B	5B	5B	Best
13	Abrasion Resistance of Organic Coatings by the Taber Abraser		ASTM D4060	No pass-fail criteria	Abrasion Wheel H-18 Load Applied 1000 Grams Number Of Cycles:14000	Best
14	Locking strength		ISO 10582:2017 Annex D	Class 32, type I:≥1.5kN/m	Long side(X): 7.6 kN/m Short side(Y): 6.3 kN/m Pass	Best
15	Determination of dimensional stability and curling after exposure to heat		ISO 23999 ASTM F3261	Length mean≦0.25％ Width mean≦0.25％ The curling≦2mm	Length mean = -0.05％ Width mean = 0％ The curling = 0mm	Best
16	Wear Layer Abrasion Resistance		EN 13329 (S-42, 200 cycle change)	IP≥2000 cycles	2400 cycles Abrasion Class: >AC3	Better
17	Density		ASTM D2395	1.9-2.2g/cm³	1.98g/cm³	Good
18	Phthalate tests (DBP/BBP/DEHP/DINP/ DNOP/DIDP)		EN 14372:2004	N/A	Free	Best
19	Heavy Metal Content Analysis		ASTM F963-16(Clause 8.3)	Antimony < 60 ppm, Arsenic < 25 ppm, Barium < 1000 ppm, Cadmium < 75 ppm, Chromium < 60 ppm, Lead < 90 ppm, Mercury < 60 ppm, and Selenium < 500 ppm	Free	Best
20	Gloss Level (gu)		ASTM D523	±2gu	< ±2gu	Good
21	Resistance to Chemicals		ASTM F925	0 - No change (----) 1 - Slight change 2 - Moderate change 3 - Severe change	0 No Change	Good
22	Determining Resistance of Synthetic Polymers to Fungi		ASTM G21	Rating 0: No Fungal Growth on Sample Rating 1: Trace of Growth (< 10% coverage) Rating 2: Light Growth (10-30% coverage) Rating 3: Medium Growth (30-60% coverage) Rating 4: Heavy Growth (60-100% coverage)	Rating 0, No Fungal Growth on Sample	Best
23	Smoke Density (Non-Flaming)		ASTM E662	≦450	291	Best
24	Smoke Density (Flaming)		ASTM E662	≦450	237	Best
25	Calculated Sound Transmission (STC)		ASTM E90-09 (2016) ASTM E413-16	No pass-fail criteria	52	Good
26	Residual indentation		ASTM F1700-13a & ASTM F1914-07(2011)	Average value≦8% Individual value≦10%	0.40%	Best
27	Determination of Indentation and Residual Indentation		ISO 24343-1:2012	N/A	0mm	Best
28	Static Load		ASTM F970-17	N/A	0.04mm	Good
29	Heat Stability of Resilient Flooring by Color change		ASTM F1514	< 8.0 ΔE	ΔE=0.67	Best
30	Light Stability of Resilient Flooring by Color change		ASTM F1515	< 8.0 ΔE	0.29-0.46 ΔE	Best
31	Static Coefficient of Friction		ASTM C1028	≥ 0.60 for dry surfaces ≥ 0.53 for wet surfaces	Dry 0.69 Wet 0.56 with 50lbs load	Good
32	Fire resistance		EN 9239-1 EN ISO11925-2 EN 13501-1	Critical Fluxf≥8.0kW/m² Fs≤150mm within 20s Smoke≤750% minutes	Bfl-S1	Better
33	Formaldehyde Emission		ISO 17226-1:2008	N/A	Free	Best
34	Slip resistance		EN13893	N/A	Class DS	Good
35	Slip resistance (oil-wet ramp test)		DIN 51130:2014-02	N/A	Critical angle of inclination: 14.8°Classification: R10 Pass	Good
36	Large ball impact resistance		NALFA/ANSI LF-01-2011	N/A	No cracks or fractures occurred at the height of 2500mm	Best
37	Static Electrical Propensity		EN 1815:2016 method A	≦2kV	0.2kV	Best
38	Surface Bond		NALFA/ANSI LF-01-2011	N/A	1.14MPa	Good
39	Thermal conductivity		EN 12667:2001	N/A	0.154 W/(m.K)	Best
40	Thermal Resistance		EN 12667:2001	N/A	0.033(m2.K)/W	Best
41	Colour Fastness		EN ISO 105-B02:2014	N/A	Grade 6	Good
